JW-40lb
Jawin
4100
Size: | |
---|---|
Color: | |
Availability: | |

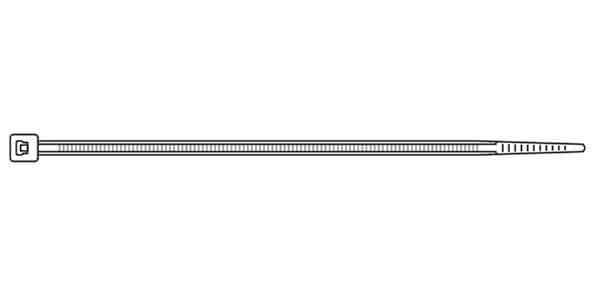

Effective for use in a wide variety cable and wire bundling applications requiring a maximum 40-lb. tensile strength.
Available in multiple colors, including fluorescents, and in varying lengths between 5”, 8”, 11”, and 14” lengths”, these non-reusable zip ties are available in bundles of either 100 or 1000 .
Description
Material:New PA66 nylon, fire rating 94V-2, acid resistance, corrosion resistance, good insulation, not easy to age, safety and environmental protection. Conforms to RoHS standard.
Application temperature:-40℃ to 85℃.
Installation temperature:-35℃ to 85℃.
Natural,Black,UV black and other colors are available as requested.
Durable width: 3.6MM/1.42Inch, Max Tensile Strength: 40lbs.
Color: Natural,Black,UV black and other colors are available as requested.
Feature
Self-locking Design, Strong durable powerful lock, The gear is clear and the bite force is strong, can be easily locked.
Application
Perfectly for indoors and outdoors.
Repair plant branches, and garden fences. The ties are effective at preventing trees from breaking.
It can also decorate the branches of the Christmas tree.
In offices, they can be used to organize wires, hang LED lights.
Technical Parameters
Item No. | L | W/MM | Max.Bundle DIA.(mm) | Tensile Strength | ||
INCH | MM | LBS | KGS | |||
JW-4×100 | 4″ | 100 | 3.6 | 22 | 40 | 18 |
JW-4×120 | 4 3/4″ | 120 | 3.6 | 30 | 40 | 18 |
JW-4×140 | 5 1/2″ | 140 | 3.6 | 33 | 40 | 18 |
JW-4×150 | 6″ | 150 | 3.6 | 35 | 40 | 18 |
JW-4×180 | 7″ | 180 | 3.6 | 44 | 40 | 18 |
JW-4×200 | 8″ | 200 | 3.6 | 53 | 40 | 18 |
JW-4×220 | 8 5/8″ | 220 | 3.6 | 58 | 40 | 18 |
JW-4×250 | 10″ | 250 | 3.6 | 65 | 40 | 18 |
JW-4×280 | 11″ | 180 | 3.6 | 70 | 40 | 18 |
JW-4×300 | 11 5/8″ | 300 | 3.6 | 80 | 40 | 18 |
JW-4×370 | 14 1/2″ | 370 | 3.6 | 102 | 40 | 18 |
Wenzhou Join electric Co.,ltd is an ISO9001 certified professional manufacturer of nylon cable ties for more than 15 years since 2005.
Our main products covers:Nylon cable tie,cable gland,clips,connectors and wiring protectors.
