Insulated Ring Terminals

Red,blue and yellow insulated ring terminals designed to terminate cooper cores.
They increase the safety and durability of connection during equipment operation.
Complete range of ring terminals that combine high quality and affordable price
Availability:
Product Description

About this item

  • Material: High Quality PVC insulation


Features

  • HIGH QUALITY】--- High Quality Copper and PVC ensure excellent safely wire contact for vehicle, household and electrical use, Comply with International standards.

  • SIZES】--- Wire range: 22-16 ( Red ) / 16-14 ( Blue ) / 12-10 ( Yellow ) A.W.G.

    With three different colors, as well as a detailed chart for easy identification or for different purposes of use.

  • Excellent Wire Contact】--- Copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime.

  • WIDE APPLICATIONS】--- Widely used in marine and automobile applications, comes with all you need to make solderless electrical repairs around the home, shop or outside.





Application

Commonly used for various automotive, marine, powersports, and industrial wiring applications and helps to protect against abrasion, crushing of wires and cables.

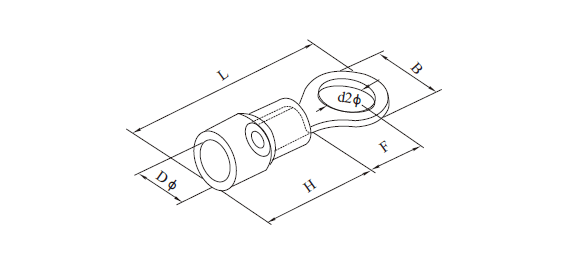

Technical Parameters

Ring terminal

Wire range.

编号

Item No.

Screw

 Size

Screw

 Dia.

(mm)

尺寸Dimension

颜色
Color

B

L

F

H

D φ

Cable dia:
0.5~1.5mm² (22-16)

Max Current:=19A

RV1.25-3

#4

3.2

5.7

17.8

4.95

10.0

4.3


Red

RVS1.25-3.5

#6

3.7

5.7

17.8

4.95

RVM1.25-3.5

#6

3.7

6.6

20.1

6.3

RVL1.25-3.5

#6

3.7

8.0

21.5

7.0

RVS1.25-4

#8

4.3

6.6

20.1

6.3

RVL1.25-4

#8

4.3

8.0

21.5

7.0

RV1.25-5

#10

5.3

8.0

21.5

7.0

RV1.25-6

1/4

6.5

11.6

27.5

11.1

RV1.25-8

5/16

8.4

11.6

27.5

11.1

RV1.25-10

3/8

10.5

13.6

31.6

13.9


Cable dia.:
1.5~2.5mm² (16~14)
Max Current=27A

RV2-3

#4

3.2

6.6

17.8

4.3

10.0

4.9


blue

RVS2-3.5

#6

3.7

6.6

17.8

4.3

RVM2-3.5

#6

3.7

6.6

21.0

7.0

RVL2-3.5

#6

3.7

8.5

22.5

7.75

RVS2-4

#8

4.3

6.6

21.0

7

RVL2-4

#8

4.3

8.5

22.5

7.75

RVS2-5

#10

5.3

8.5

22.5

7.75

RVL2-5

#10

5.3

9.5

22.5

7.25

RV2-6

1/4

6.5

12

27.6

11

RV2-8

5/16

8.4

12

27.6

11

RV2-10

3/8

10.5

13.6

30.2

13.9


Cable dia:
2.5~4mm² (14~12)
   最大电Max.curecnt=37A

RV3.5-4

#8

4.3

8.0

24.5

7.7

12.5

6.2


black

RVS3.5-5

#10

5.3

8.0

24.5

7.7

RVL3.5-5

#10

5.3

12.0

27.9

7.7

RV3.5-6

1/4

6.5

12.0

27.9

7.7


Cable dia.:
4~6mm² (12~10)
Max.curecnt=48A

RV5.5-3.5

#6

3.7

7.2

21.4

5.9

12.5

6.7


yellow

RVS5.5-4

#8

4.3

7.2

21.5

5.9

RVL5.5-4

#8

4.3

9.5

25.5

8.3

RV5.5-5

#10

5.3

9.5

25.5

8.3

RV5.5-6

1/4

6.5

12.0

31.5

13.0

RV5.5-8

5/16

8.4

15.0

33.7

13.7

RV5.5-10

3/8

10.5

15.0

33.7

13.7

RV5.5-12

1/2

13.0

19.2

38.1

16.0
