Insulated Pin Terminal

Red,blue and yellow pin terminals for terminating copper cables and wires,in which the connection part has the form of a pin.
They improve contact quality and facilitate the connection of wires with terminals in equipment.
Availability:
Product Description

Specifications:
Specification

Material: Insulation: Vinyl, Terminal Body: Copper
Suits wire sizes: 22-16AWG 0.5-1.5 sq.mm
Bolt Mouth Size (suits screw DIA) : 4.3mm / 0.169 Inch

Red insulation:for 0.5-1.5mm2 wires.

Blue insulation:for 1.5-2.5mm2 wires.

Yellow insulation:for 4.0-6mm2 wires.



Features

  • HIGH-STRENGTH CONSTRUCTION: Made of high-strength electrolytic copper alloy and electro-tin plated for corrosion resistance.

  • COLOR CODED: Enhance identification with these nylon insulated pin terminals that are color coded in red, yellow or blue and available with 12-10, 16-14 or 22-16 wire sizes.

  • EASY ENTRY: The nylon insulation of these nylon insulated pin terminals help to eliminate strand hang up, ultimately increasing crimping rates and offering mechanical strain relief.



Application

Widely applied in electric and electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts and telecommunication, petrol


Technical Parameters

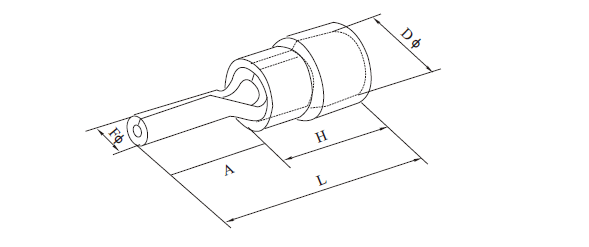

Pin terminal

Cable Dia.:
0.5~1.5mm²(22-16)
Imax=19A


编 号
Item NO.

尺寸Dimension

颜色
Color

F φ
(mm)

L
(mm)

H
(mm)

H
(mm)

PTV1.25-9

PTV1.25-9

1.9

10.0

4.3


Red

PTV1.25-10

PTV1.25-10

1.9

PTV1.25-12

PTV1.25-12

1.9

PTV1.25-13

PTV1.25-13

1.9

PTV1.25-18

PTV1.25-18

1.9

Cable Dia.:
1.5~2.5mm² (16~14)
Imax=27A

PTV2-9

PTV2-9

1.9

10.0

4.9


Blue

PTV2-10

PTV2-10

1.9

PTV2-12

PTV2-12

1.9

PTV2-13

PTV2-13

1.9


PTV2-18

PTV2-18

1.9

Cable Dia.:
4~6mm² (12~10)
Imax=48A

PTV5.5-13

PTV5.5-13

2.8

25.5

12.5


yellow
