Arrow Headed Push Mount Cable Ties

wire tie, zip tie. Bent tip, low threading force, no sharp edges ensure smooth zip in, easiest handling and installation.
Widely used in household, construction industry, electronic industry, auto, cable and wire assembly, packaging and shipping, outdoor activities.
  • Arrow headed Push Mount Cable Ties
  • Jawin/OEM
Size:
Availability:
Product Description

Arrow Push Mount Cable Ties


Description

  • MaterialNylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and durable.

  • Application temperature-40℃ to 85℃.
    Installation temperature-20℃ to 85℃.

  • ColorNatural, Black,UV black, other colors are available as requested.



Feature

  • Muti-purpose tie, wire tie, zip tie. Bent tip, low threading force, no sharp edges ensure smooth zip in, easiest handling and installation.

  • Widely used in household, construction industry, electronic industry, auto, cable and wire assembly, packaging and shipping, outdoor activities.



Technical Parameters

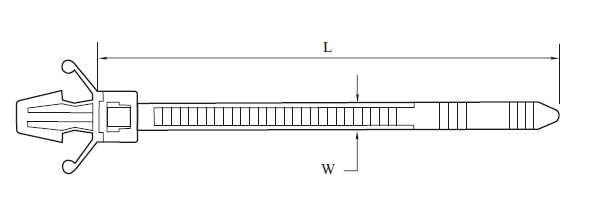

jawin push mount tie drawing(1)

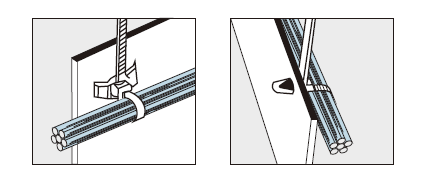

jawin push mount tie drawing1(1)

Item No.

L

W/MM

Max.Bundle DIA.(mm)

Tensile Strength

INCH

MM

LBS

KGS

JW-100PT

4″

100

2.5

22

18

8.0

JW-120PT

4 3/4″

120

3.2

25

30

13.6

JW-120PPT

4 3/4″

120

4.8

25

50

22.0

JW-123PT

4 4/5″

123

3.5

26

40

18.0

JW-160PT

6 1/4″

160

4.8

38

50

22.0

JW-190PT

7 1/2″

190

4.8

45

50

22.
