PG Nylon Cable Gland

Our waterproof cable gland meets the IP68 waterproofing, it can resist immersion in water one meter even more in depth.
It provides an airtight seal to keep out dust, dirt, moisture, water and common solvency, which is a key function working with electrical equipment.
Availability:
Product Description

Nylon Cable Glands Joints Wire Protectors


About this item


  •  Material: made from UL Nylon 66, 94V-2 and tighten ring from rubber.

  • Special design of clamp ring, good clamping strength and protective for electric machinery.

  • No need of disassembling the cable gland, cable can go through directly then tighten it, easy to operate and save time.

  • Application:used for machinery control box, distribution plate, machine and electrical, etc.





Feature

  • It provides an airtight seal to keep out dust, dirt, moisture, water and common solvency, which is a key function working with electrical equipment.


  • WIDE CABLE RANGE - there're many sizes of cable connectors available to meet your variety needs of cable connections for different gauges

  • EASE OF USE - Simple four steps to install a cable gland in your electric project: Detach the nut; Match the cable range with your gland size; Insert to end of the gland; Tighten the nut and secure the gland in place




Technical Parameters

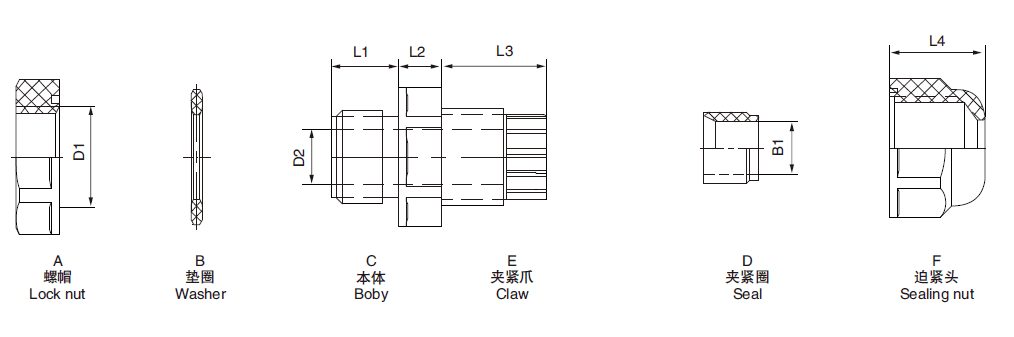

cable gland PG drawing(1)


编 号
Item NO.

D1(mm)

D2(mm)

L1(mm)

L2(mm)

L3(mm)

L4(mm)

B1(mm)

电缆直径范围
Cable range

PG-N07

12.6

8.5

8.4

5.5

13.4

12

6.6

3.5-6

PG-N09

15.5

11

8.5

5.5

15

13.5

8.8

4-8

PG-N011

18.3

13.4

8.5

5.5

17

15

10.8

5-10

PG-N13.5

20.5

15.4

8.5

5.5

18

15

12.8

6-12

PG-N16

23

17.9

10.5

6

18.5

16.5

14.8

10-14

PG-N19

24.5

19

11

6

20

19

16

12-15

PG-N21

28.5

23

10.8

6

20.7

20

18.9

13-18

PG-N24

32.5

27

11.8

7

24.2

22

22.8

15-22

PG-N29

36.6

29

11.4

7.5

26.1

24

25.8

18-25

PG-N36

47.8

39

15

7.5

31

28

33.8

22-32

PG-N42

55

46

13.2

8

33.8

30

39

30-38

PG-N48

60

52

14.2

8

34.8

31

45

34-44

PG-N63

71.4

63.8

19.8

8.8

41.4

41.6

55

42-54
