Screw Barrier Terminal Block

Terminal Block White Screw Terminal Connector Dual Row Electric Barrier Block 12-Position Terminal Strip for Electrical DIY and Small Home Projects
Only need to strip the wires, and insert them into the terminal strip and tighten the screws, no need for troublesome welding
Availability:
Product Description

About this item

Material: Copper, PP
Color: white,black

Feature

  • PP shell with good insulation, corrosion resistance and wear resistance; They can stand temperature between minus 40 to 150 degrees Celsius, have nice electrical conductivity.

  •  Crimping performance: the plated zinc alloy screws and copper-plated zinc alloy terminals have excellent stability and conductivity, can serve you for a long time

  • Easy to install: you juse need to strip the wires, and insert them into the terminal strip and tighten the screws, no need for troublesome welding; What's more, you can use scissors or other tools, cut the screw terminal block become small parts as you need

  • Multi-purpose: these dual row screw terminals can be applied for the link of lighting lamps, household appliances, electrical control, power supply, electrical maintenance, electrical machinery and more

  • Safe to use: the set screws secure wires reliable contact, and help prevent accidental contact with the terminals



Application

These screw terminal blocks allow you to connect multiple items without having to solder or splice, bring you convenience.

They are safe to use, suitable for motors, electrical control, household appliances, lighting, machinery and other electric wire connecting.



Technical Parameters

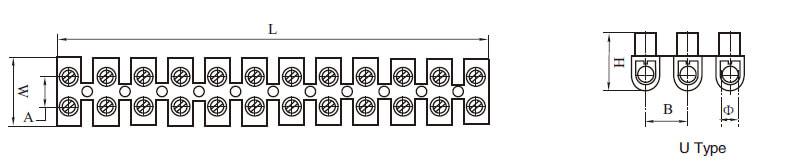

U Type



Jawin terminal block U type(1)

编 号 Item NO.

L(mm)

W(mm)

H(mm)

A(mm)

B(mm)

孔径Φ(mm)

Rated Voltage

Rated Current

Wire Range

TBS-3A

90.3

15.5

11.5

6

7.7

φ3.0

380V

3A

2.5-4.0mm²

TBS-6A

110.5

15.5

12.4

6.5

9.5

φ3.2

380V

6A

4.0-6.0mm²

TBS-10A

116.7

20

14.9

8

10

φ4

380V

10A

6.0-10.0mm²

TBS-16A

136.8

21.5

16.7

10

11.7

φ4.2

380V

16A

10.0-12.0mm²

TBS-20A

153.5

24.5

17.4

11.5

13.2

φ4.3

380V

20A

12.0-14.0mm²

TBS-30A

164.6

25

18.8

12

14.1

φ5.5

380V

30A

16mm²

TBS-60A

187.6

29

23.5

12

16

φ6.8

380V

60A

25mm²

TBS-80A

205

33

27

15

17

φ7.0

400V

80A

35mm²

TBS-100A

250

46

31

22

21

φ9.0

400V

100A

40mm²


 H Type


Jawin terminal block H type(1)


编 号 Item NO.

L(mm)

W(mm)

H(mm)

A(mm)

B(mm)

孔径Φ(mm)

Rated Voltage

Rated Current

Wire Range

TBS-3A

90.8

15.5

12.4

6

7.8

φ3.0

380V

3A

2.5-4.0mm²

TBS-6A

111.4

15.5

13.5

6.5

9.6

φ3.2

380V

6A

4.0-6.0mm²

TBS-10A

116.4

20

15.3

8

10

φ4

380V

10A

6.0-10.0mm²

TBS-16A

133.8

22.7

16

10

11.5

φ4.2

380V

16A

10.0-12.0mm²

TBS-20A

152.2

24.6

16

11.5

13.2

φ4.2

380V

20A

12.0-14.0mm²

TBS-30A

162

25

19.3

12

13.9

φ5.5

380V

30A

16mm²

TBS-60A

184.6

28.6

23

12

15.8

φ6.8

380V

60A

25mm²
