Insulated Male And Female Bullet Terminals

They are made of high conductivity tin-coated copper.
High grade PVC insulation ensures full integrity of the terminal.Terminals increase connection safety and durability.
Availability:
Inquire Add to Basket

Product Description

Fork/Spade Crimp terminals


Specification

Material: Copper + PVC+ Tinplate.

Colors: Red, Blue, Yellow, Green, Black

Connector Size: 0.5-1.5mm² /22-16 AWG cable; Max Current=19A.


Features

Strong Copper Barrel to hold the wire tight when crimped. Copper is an extremely powerful electrical conductor which can easily withstand a range of temperatures and resists corrosion.




Application

Great for automotive terminals, audio disconnectors, machines, home improvement, occasional project, and many other applications.


Technical Parameters

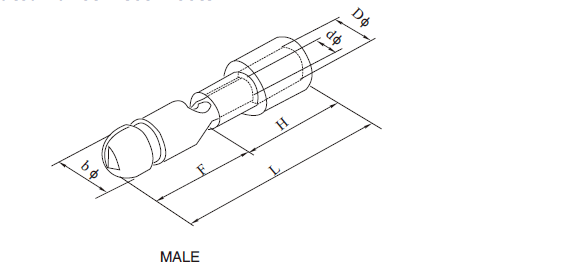

Male bullet

编 号
Item NO.

材料厚度
Thickness of material
(mm)

尺寸 Dimension

颜色 Color

b φ
(mm)

F
(mm)

D φ
(mm)

d φ
(mm

H
(mm)

L
(mm)

Cable Dia.:
0.5~1.5mm² (22-16)
Imax=10A

MPD1.25-156

0.4

4.0

11.0

2.7

1.7

10.0

21.0

Red

Cable Dia.:
1.5~2.5mm² (16~14)
Imax=15A

MPD2-156

0.4

4.0

16.0

2.7

1.7

10.0

21.0

Blue

MPD2-195

0.4

5.0

16.0

2.7

1.7

10.0

21.0

Cable Dia.:
4~6mm² (12~10)
Imax=24A

MPD5.5-195

0.4

5.0

11.0

3.4

3.4

14.0

25.0

Yellow

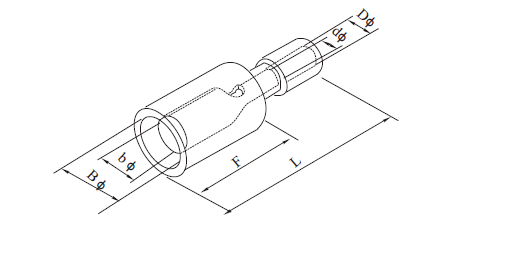

Female bullet



Cable Dia.:
0.5~1.5mm² (22-16)
Imax=10A

MPD1.25-156

0.4

4.0

11.0

2.7

1.7

10.0

21.0

Red

Cable Dia.:
1.5~2.5mm² (16~14)
Imax=15A

MPD2-156

0.4

4.0

16.0

2.7

1.7

10.0

21.0

Blue

MPD2-195

0.4

5.0

16.0

2.7

1.7

10.0

21.0

Cable Dia.:
4~6mm² (12~10)
Imax=24A

MPD5.5-195

0.4

5.0

11.0

3.4

3.4

14.0

25.0

Yellow
