Insulated Spade/Fork Terminals

Insulated spade terminals are designed for multi-stranded copper cables.Also known as fork terminals.
They are made of high conductivity tin-coated copper.
High grade PVC insulation ensures full integrity of the terminal.Terminals increase connection safety and durability.
Availability:
Product Description

Fork/Spade Crimp terminals


Specification
Material: Insulation: Vinyl, Terminal Body: Copper

Suits wire sizes: 22-16AWG 0.5-1.5 sq.mm
Bolt Mouth Size (suits screw DIA) : 4.3mm / 0.169 Inch



Features

  • [Crimp Securely] - If you solder all crimps, our spade wire connectors crimp securely, take soldering iron heat very quickly, and 60/40 solder will suck into the crimp instantly and quite nicely; a nice concave taper to the fork.

  • [Fit Cable/Screw Size] - Great spade wire connectors, they're not too large so they're easy to use with basic primary wire, suits cable/ wire size : 22-16AWG 0.5-1.5 sq.mm; Bolt Mouth Size (suits screw DIA) : 4.3mm / 0.169 Inch.

  • [High Quality] - The thickness complies with international standard, so our insulated fork spade wire connector has good electrical conductivity and also has a insulated shell which make it better performance.

  • [Easy Use] - With these fork spade wire connectors, a drop or two of flux and apply the heat, then a touch of tin and your done, beautiful solder joints you get!



Application

Insulated Fork terminals widely applied in electric and electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts and telecommunication, petrol chemical industry, industrial building machine-building, etc.


Technical Parameters

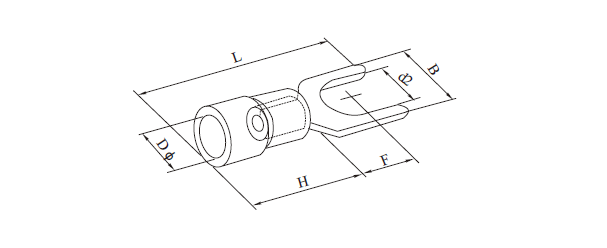

Fork terminal


Wire range.

编号

Item No.

Screw

 Size

Screw

 Dia.

(mm)

尺寸Dimension

颜色
Color

B

L

F

H

D φ

Cable dia:
0.5~1.5mm² (22-16)

Max Current:=19A

SV1.25-3

#4

3.2

5.7

21.2

6.5

10.0

4.3


Red

SVS1.25-3.5

#6

3.7

5.7

21.2

6.5

SVL1.25-3.5

#6

3.7

6.4

21.2

6.5

SVS1.25-4

#8

4.3

6.4

21.2

6.5

SVM1.25-4

#8

4.3

7.2

21.2

6.5

SVL1.25-4

#8

4.3

8.1

21.2

6.5

SVS1.25-5

#10

5.3

8.1

21.2

6.5

SVL1.25-5

#10

5.3

9.5

21.2

6.5

SVS1.25-6

1/4

6.5

9.5

21.2

6.5


Cable Dia.:
1.5~2.5mm ²(16~14)
Max.Current:
Imax=27A

SV2-3

#4

3.2

5.7

21.2

6.5

10.0

4.9


blue

SVS2-3.5

#6

3.7

5.7

21.2

6.5

SVL2-3.5

#6

3.7

6.4

21.2

6.5

SVS2-4

#8

4.3

6.0

21.2

6.5

SVM2-4

#8

4.3

7.2

21.2

6.5

SVL2-4

#8

4.3

8.1

21.2

6.5

SVS2-5

#10

5.3

8.1

21.2

6.5

SVL2-5

#10

5.3

9.5

21.2

6.5

SVS2-6

1/4

6.5

9.5

21.2

11.0

SVL2-6

1/4

6.5

12.0

21.2

7.0


Cable Dia.:
  2.5~4mm² (14~12)
Max.Current:
Imax=37A

SV3.5-4

#8

4.3

8.0

24.8

7.0

12.5

6.2


black

SV3.5-5

#10

5.3

8.0

24.8

12.1

SV3.5-6

1/4

6.5

12.0

28.0

7.5


Cable Dia:
     4~6mm² (12~10)
Max.Current:
Imax=48A

SV5.5-3.5

#6

3.7

8.3

25.2

7.5

12.5

6.7


yellow

SVS5.5-4

#8

4.3

8.3

25.2

7.5

SVL5.5-4

#8

4.3

9.0

23.9

7.5

SV5.5-5

#10

5.3

9.0

23.9

7.5

SVS5.5-6

1/4

6.5

9.0

23.9

7.5

SVL5.5-6

1/4

6.5

12.0

31.2

12.0

SV5.5-8

5/16

8.4

14.0

30.0

11.5
