Metric Nylon Cable Gland

Not need to disengage the fix terminal, cable can be inserted through directly then tighten easy,the other end of the joints can be either connected with the housing of equipment.
Availability:
Product Description

Waterproof IP68 Nylon Cable Gland Joint Adjustable Locknut for 4mm-8mm Dia Cable Wire



Feature



  • DURABLE MATERIAL: Cable Glands made from Nylon PA66, fitted with locknut and washer to seal around your wires, size: 32.7*19.4*26mm


  • EASY TO INSTALL: Not need to disengage the fix terminal, cable can be inserted through directly then tighten easy,the other end of the joints can be either connected with the housing of equipment.


  • IP68-5 PROTECTION: Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68-5 bar and none damage to electrical machine


  • UNIQUE DESIGN: Designed for a perfect grip and effortless spanner tight seal, multiple threaded design ensures secure and rapid assembly and permanent fit of the cap nut (vibration-safe)


  • ECONOMICAL AND PRACTICAL: Essential waterproof gland for all weather electrical fittings such as sockets, switches and junction boxes, good strengthsile and suitable for 6-12mm cables.




Technical Parameters

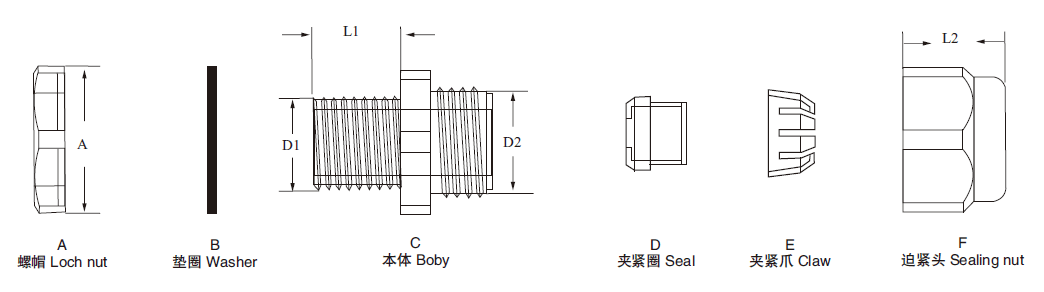

Nylon Cable Glands(metric) drawing(1)

Item NO.

Threaded entry
metric (mm)

Cable range
φ(mm)

D1(mm)

D2(mm)

Panel mounting
hole (mm)

L1(mm)

L2 (mm)

A (mm)

MG-12

M12×1.25

7.6-4.6

12

M16×1.5

12.5

8.5

16

19

MG-16

M16×1.5

10-6

16

M20×1.5

16.5

15

19.5

24

MG-20

M20×1.5

14-9

20

M25×1.5

20.5

15

21.5

30

MG-25

M25×1.5

18-13

25

M31×2

25.5

15

24.5

36

MG-32

M32×1.5

25-18

32

M38×2

33

15

27.5

46

MG-40

M40×1.5

30-24

40

M46×2

41

20

31

54

MG-50

M50×1.5

39-30

50

M58×2

51

23

37

67

MG-63

M63×1.5

48.5-40

63

M72×2

64

24

42

81.5
