Easy-Twist Winged Wire Connector

Winged Wire Connector Designed to connect wires of 18 through 8 gauge,Easy to use,push stripped conductors into connector and screw on.
Availability:
Product Description

Winged Electrical Wire End Connectors Caps Small Twist-on Wire Connectors Nuts 18-10 AWG

About this item

Material:UL Nylon 66 , with spring inside.

Usage:peel wire coat, insert wires in, then tighten



Feature

  • Easy to use,push stripped conductors into connector and screw on.

  • Color-Coded for Easy Size Selection - Reusable for Easy Circuit Changes and Additions

  • High-dielectric shell features deep skirt design to prevent exposure of bare wire.

  •  Exceptional design makes twisting easier, ensuring proper installation - especially in tight spaces

  • Deep surface ridges provide better grip

  • Threaded funnel entry guides the wires into the Connector easily

  • Swept-back wing design provides handling comfort and increased torquing ability

  • Square wire spring provides secure gripping of conductors

Application

For use in Electrical Appliances, Lighting, and Building Wiring



Technical Parameters

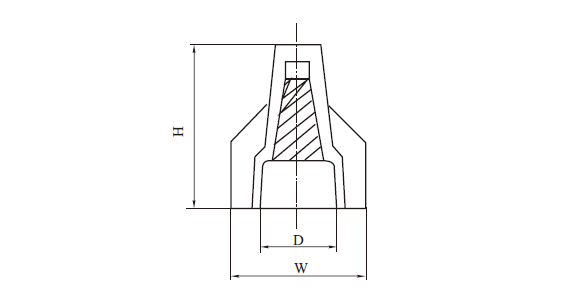

 double wings srew wire connector drawing(1)

编 号 Item NO.

高(H)(mm)

宽(W)(mm)

内径(D)(mm)

适用电线 Suitable Wires

颜色 Color

JW-P1

22.0

19.0

12.5

MIN#18×2 MAX#12×3

黄 Yellow

JW-P2

28.0

22.2

15.0

MIN#14×2 MAX#10×4

红 Red
