Ribbed Plastic Drywall Wall Anchors

For light duty anchoring applications and offer extra support. For use in concrete, brick, hollow block, drywall and plaster.
Availability:
Product Description

Plastic Self Drilling Drywall Ribbed Anchors

Description

  • PE(white, grey), high elasticity, impact resistance.

  • Inserting type, nail attached in clips.Save time and cost.



Feature

  • These plastic anchors are intended for light duty anchoring applications and offer extra support.

  • For use in concrete, brick, hollow block, drywall and plaster

  • Works well in hard surfaces where no studs or beams are behind the surface. Pre-drilling is required.

  • The split in the ribbed anchors expand on two opposing sides as you tighten the screw, Ribs prevent the anchor from turning in the hole during installation

  • The split in the anchor ensures three way expansion on sides for increased holding power

  • Easy to install. Once anchor installed, they provide a flush, clean appearance in drywall


Technical Parameters

编 号 Item NO.

长(L) (mm)

外 径(D) (mm)

内 径(d) (mm)

螺丝钉Screw (mm)

EN-06×30

30.0

6.0

5.0

Φ4×30

EN-07×30

30.0

7.0

5.6

Φ5×30

EN-08×40

39.0

8.0

5.4

Φ5×40

EN-08×80

80.0

8.0

6.0

Φ5.5×80

EN-10×45

44.0

10.0

5.8

Φ5×45

EN-10×100

100.0

10.0

7.5

Φ6.5×100

EN-12×50

48.3

11.6

6.3

Φ6×50

EN-12×60

58.6

12.0

9.8

Φ6×60

EN-14×70

70.0

14.0

11.5

Φ10×70

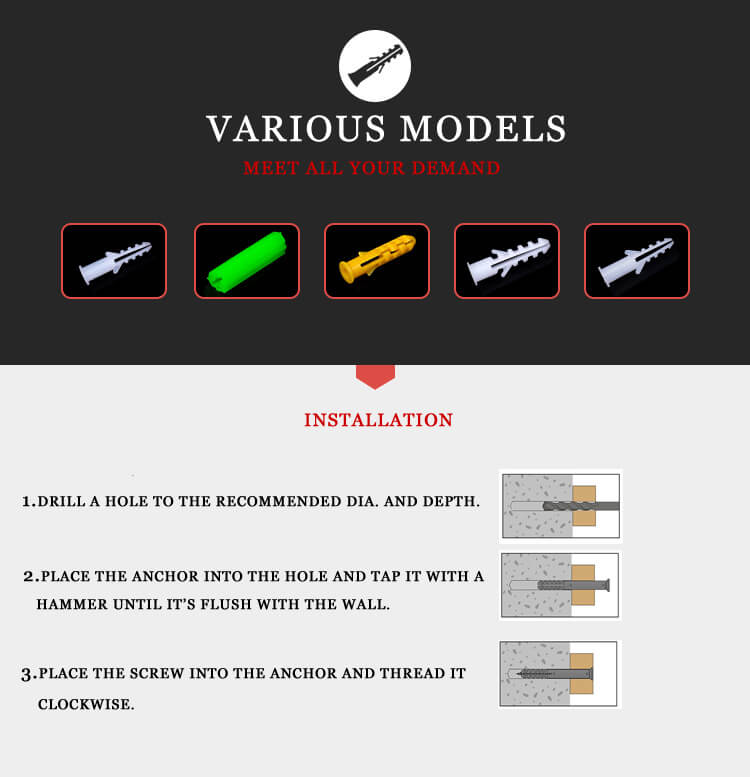

 HOW TO USE

expand nail installation
