Plastic Cable Identification Wire Cord Cable Marker

Used for circle of flat wire size from 3.5mm-7.0mm.Keep long and clear marking on wires
Availability:
Product Description

Coded Clip on Plastic Cable Identification Wire Marker Number Tag Label C-Type

About this item

  • Soft PVC, concave conversed shape,the inner structure is hollow but elastic, and the diameter can change with the wire.

  • Each roll with different number markers. Number "0, 1, 2, 3, 4, 5, 6, 7, 8, 9",yellow Body with marking in black ink.

  • Suitable maximum 7mm diameter,6mm width of each grain, and the number of grains in a roll is about 180 grains.

  • Just peel each hack lightly to use,all markers fit together with tenons and mortises.



Features

  • Be elastic and can be used within a certain line diameter range.

  • Easy to use.Interlocking.

  • Keep long and clear marking on wires.Multiple combinations of different colors to make route marking more intuitive.

  • There is an inverted beard on the claw, which does not fall off on the wire.



Application

 Used for circle of flat wire size from 3.5mm-7.0mm.widely used in the fields of electronics, electrical appliances, computers, locomotive network wiring, etc.



Technical Parameters

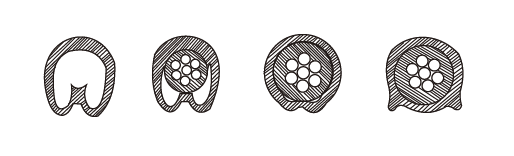

1553750126133308


编 号
     Item NO.

适用电线Approx Wire

号码
     Markers

包 装
     Packing

SQ(mm² )

mm

EC-0

0.75~1.5

2.0~3.2

0~9
       A~Z
     + - / \

1000PCS/ROLL

EC-1

0.75~3.5

3.0~4.2

1000PCS/ROLL

EC-2

3.5~8.0

3.6~7.4

500PCS/ROLL

EC-3

5.2~10.0

5.2~10.0

350PCS/ROLL

EC-4

8~22

6.2~10.0

250PCS/ROLL



How to use

610HBFYNIOL._AC_SL1000_
