Double Locking Cable Ties

It is a special double lock cable tie,it can pack two products at the same time. can be used in Home,Auto Indoor & Outdoor,Packing,Garden,Bicycle,Transportation, and so on.
Availability:
Inquire Add to Basket

Product Description

Unique Double Lock Nylon Cable Ties with UV Self-Locking


It is a special double lock cable tie,it can pack two products at the same time. can be used in Home,Auto Indoor & Outdoor,Packing,Garden,Bicycle,Transportation, and so on.



Description

◆ Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control, insulate well and not easy to aging、tensile strong.
◆ Application temperature：-40℃ to 85℃.
◆ Installation temperature：-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.

Feature:

  • For high temperature applications up to 239°F (115°C) – indoor use

  • A fast and economical method to secure and separate two bundles

  • Reduces part number inventory – single part covers multiple bundle sizes

  • Installs easily by hand – second loop can be installed with cable tie installation tools.



Technical Parameters

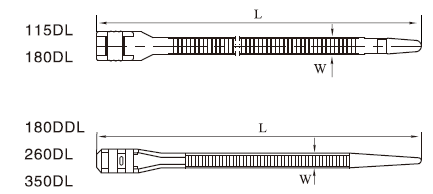

jawin double locking tie drawing(1)



Item No.

Length

Max.Bundle DIA.(mm)

Tensile Strength

INCH

MM

LBS

KGS

JW-115DL

5 1/8″

115

6.0

22

18

JW-180DL

7″

180

6.0

45

18

JW-180DDL

7″

180

9.0

45

25

JW-260DL

10 1/4″

260

9.0

66

40

JW-350DL

13 5/8″

350

9.0

90

40
