Brass Cable Gland

Material: Body: Nickel-plated brass,
Seal: PA66, Sealing: NBR.
Special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease and other solvent.
Availability:
Product Description

Waterproof IP68 Brass Nylon Cable Gland Joint Adjustable Locknut



About this item

  •  Material: Body: Nickel-plated brass,

  Seal: PA66, Sealing: NBR.

  • Certification: CE, ROHS, REACH

  • Protection rating: IP68.

  • Application temperature: Static condition:-40℃ to 100℃,short-time 120℃. Dynamic condition: -20℃ to 80℃,shorttime 100℃.

  • Thread length: Standard thread type is suitable for equipment with internal thread or with thin plate. Longer thread type is suitable for thick plate.

Feature

  • Special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease and other solvent.


Application

  • fix the cable gland on the plate, insert cable through the assembled gland and tighten gland locknut until cable is secured.




Technical Parameters

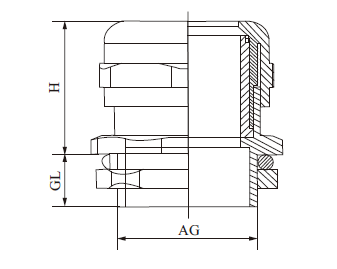

brass cable gland drawing(1)

编 号
Item NO.

适用电缆
(mm)
Cable range

螺纹外径
(mm)
Thread O.D.

机板口径
(mm)
Mounting
hole
diameter

螺纹长度
GL (mm)
Thread
length GL

接合长度
H (mm)
Joint
length H

扳手径
(mm)

Spanner

size



M8×1

5.5-2

8

8-8.2

5

16

12

M10×1

6.-3

10

10-10.2

7

19

14

M12×1.5

6.5-3

12

12-12.2

7

19

14

M14×1.5

8-4

14

14-14.2

7

19

17

M16×1.5

8-4

16

16-16.2

8

20

18

M18×1.5

10-5

18

18-18.2

8

21

20

M20×1.5

12-6

20

20-20.2

8

22

22

M22×1.5

14-10

22

22-22.2

8

23

24

M24×1.5

14-10

24

24-24.2

9

25

24/27

M25×1.5

14-10

25

25-25.2

9

25

24/27

M27×1.5

18-13

27

27-27.2

9

27

30

M28×1.5

18-13

28

28-28.2

9

27

30

M30×1.5

18-13

30

30-30.2

9

29

30/32

M32×1.5

22-15

32

32-32.2

10

29

35

M36×1.5

25-18

36

36-35.2

10

31

40

M40×1.5

25-18

40

40-40.2

11

31

40/45

M42×1.5

30-22

42

42-42.2

11

35

45

M48×1.5

33-25

48

48-48.2

11

37

50/52

M50×1.5

38-32

50

50-50.2

12

37

50/52

M54×1.5

38-32

54

54-54.2

12

38

57

M60×1.5

44-37

60

60-60.2

13

38

64

M63×1.5

44-37

63

63-63.2

13

38

64/68

PG7

6.5-3

12.5

12.5-12.7

7

19

14

PG9

8-4

15.2

15.2-15.4

8

20

17

PG11

10-5

18.6

18.6-18.8

8

21

20/21

PG13.5

12-6

20.4

20.4-20.6

8

22

22

PG16

14-10

22.5

22.5-22.7

9

23

24

PG19

14-10

25

25-25.2

9

25

24/27

PG21

18-13

28.3

28.3-28.5

9

27

30

PG25

22-15

32

32-32.2

10

29

35

PG29

25-18

.37

37-37.2

11

31

40

PG36

33-25

47

47-47.2

12

37

50

PG42

38-32

54

54-54.2

13

38

57

PG48

44-37

59.3

59.3-59.5

14

38

64

PG63

52-42

72

72

15

42

77
